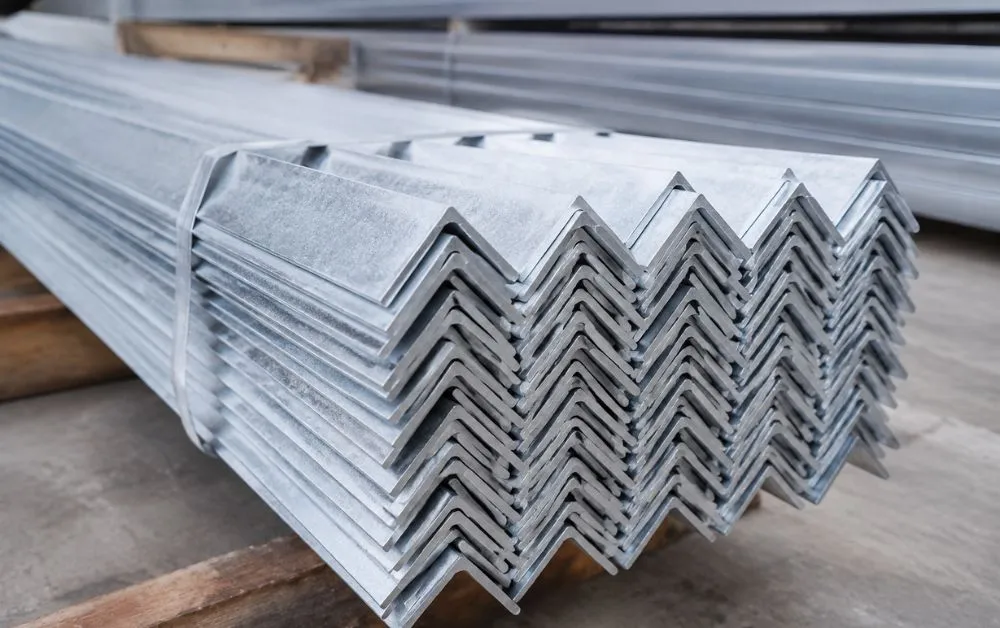

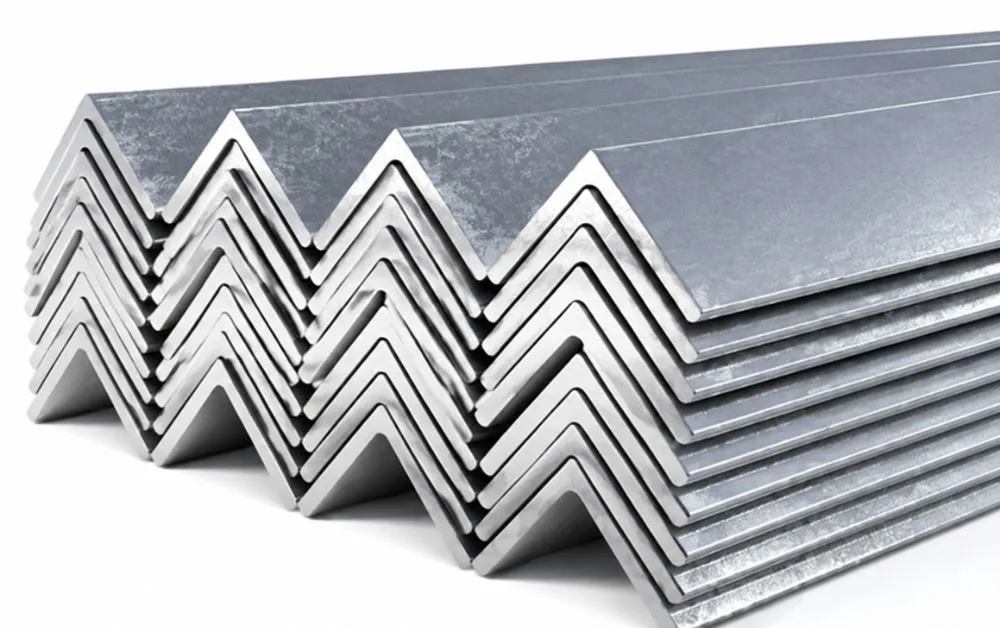

Galvanized iron angles are a fundamental material in construction, electrical, and mechanical projects across Dubai and the UAE — combining the structural efficiency of the L-shaped steel angle section with the corrosion protection that hot-dip galvanizing provides for applications in external, exposed, or corrosive environments. GI angles in Dubai are used across a wide range of applications — from cable tray support systems and electrical conduit framing to structural purlin systems, fence posts, and light structural framing in corrosion-exposed environments. Sydney Metal Trading is a trusted supplier of galvanized iron angles Dubai and comprehensive GI angle suppliers Dubai service for the UAE construction and electrical sectors.
Hot-Dip Galvanizing Process and Coating Performance
Hot-dip galvanizing coats steel with zinc by immersing it in a bath of molten zinc at approximately 450 degrees Celsius. The zinc reacts metallurgically with the steel surface to form a series of zinc-iron alloy layers topped with an outer layer of pure zinc. This coating provides two mechanisms of corrosion protection. First, the zinc layer acts as a physical barrier preventing moisture and oxygen from reaching the steel surface. Second, when the zinc coating is damaged and bare steel is exposed, the zinc sacrificially corrodes in preference to the steel, providing cathodic protection that prevents the underlying steel from rusting even where the coating is locally damaged. For UAE construction applications in exposed coastal environments with high salinity and humidity, galvanized steel significantly outlasts uncoated mild steel.
Electrical and MEP Installation Applications
Cable management systems in commercial and industrial buildings use gi angles as the primary structural support for cable trays, cable ladders, conduit, and wireway systems that carry electrical and data cables throughout the building. Support angles are bolted or welded to structural elements to create the framework that carries cables safely and at the correct spacing throughout the building in accordance with installation standards. In outdoor and industrial environments where moisture and corrosion are concerns, galvanized angles provide long service life without the deterioration that unprotected steel would experience within months. Sydney Metal Trading supplies pre-cut, standard-length, and full-bar galvanized angles for MEP contractors across Dubai and the UAE.
See also-Structural Steel Angles: Types, Sizes, and Applications
Structural Use in Corrosion-Exposed UAE Applications
For structural applications in UAE environments where external exposure, coastal salinity, or process chemical contact makes corrosion a concern, galvanized structural angles provide the combination of structural performance and corrosion resistance needed for acceptable service life without excessive maintenance. Agricultural buildings in coastal and humid areas, coastal infrastructure including jetties and walkways, outdoor storage structures exposed to salt air, and processing facilities where periodic wash-down occurs all benefit from galvanized structural steel over the standard black steel that would be appropriate only in sheltered internal environments. Sydney Metal Trading advises on the appropriate specification of galvanized angles for each structural application.
Galvanizing Standards and Coating Thickness Requirements
Galvanized steel sections in the UAE market are produced to various standards that specify minimum zinc coating thickness and testing methods. EN ISO 1461 defines requirements for hot-dip galvanized coatings on fabricated iron and steel articles — covering minimum average and minimum local coating thickness requirements and testing methods for verification. BS EN 10255 covers the base steel tube specification for galvanized tube products. And ASTM A123 covers galvanized coatings on structural steel shapes and plates. Sydney Metal Trading supplies galvanized angles compliant with applicable standards and can provide coating thickness verification documentation for projects requiring formal quality assurance.
Sourcing and Supply from Sydney Metal Trading
Sydney Metal Trading maintains comprehensive stock of gi angles in the most commonly specified sizes for UAE construction and electrical applications — enabling rapid fulfillment for routine requirements without waiting for galvanizing lead times. For project requirements involving galvanizing of specific fabricated items, Sydney Metal Trading can coordinate with UAE galvanizing facilities to provide a complete supply and coating service. Project supply arrangements — including dedicated stock reservations and phased delivery schedules that match the project installation program — are available for major construction projects requiring large quantities of galvanized steel angle over extended project durations.
The installation of galvanized angle steel support systems for cable management in commercial buildings requires coordination with the electrical design and the building structure to ensure supports are located and spaced correctly for the cable loads and the cable management manufacturer requirements. Cable tray manufacturers specify maximum support spacing for each cable tray width and loading condition, and exceeding this spacing risks tray deflection that can damage cable insulation over time. Galvanized steel angle brackets — cut to the correct length and punched to accept cable tray fixing bolts — are the standard support method for most cable tray installations in UAE commercial buildings. Sydney Metal Trading provides these support materials cut to length and ready for installation.
Conclusion
Comprehensive supply of GI angles in Dubai from Sydney Metal Trading provides contractors and fabricators with quality galvanized iron angles Dubai in the sizes and quantities required for construction, electrical, and structural projects. As established GI angle suppliers Dubai serving the UAE market, Sydney Metal Trading maintains consistent availability of both standard and project-specific galvanized angle requirements. Contact Sydney Metal Trading LLC today for all your galvanized angle needs.
