H Beams — also referred to as wide flange beams, I-beams, or W-sections depending on regional naming conventions — are among the most fundamental and widely used structural steel sections in the UAE’s construction, industrial, and infrastructure sectors. Their distinctive H-shaped cross section, with flanges of nearly equal width to the overall section depth, provides exceptional structural efficiency for the primary load-carrying applications across multi-storey building frames, industrial structures, infrastructure, and heavy equipment — making them one of the highest-volume structural steel product categories procured for UAE construction and industrial projects throughout the year.
Structural Advantage of Wide Flange Geometry
The engineering advantage of H beam geometry over simpler structural sections derives from the fundamental principle of bending mechanics: material positioned far from the neutral axis of a section contributes proportionally more to bending resistance than material close to the neutral axis. The H beam’s wide flanges concentrate structural material at the maximum distance from the neutral axis — at the top and bottom of the section — where bending stresses are highest, while the web connecting the flanges resists shear forces efficiently. This material distribution means that an H beams delivers significantly more bending capacity per kilogram of steel than a square hollow section, round bar, or smaller I-section of equivalent weight. For structural engineers designing primary building frames, equipment platforms, and infrastructure elements, this efficiency directly translates into reduced steel tonnage, lower material cost, and reduced foundation loads for equivalent structural performance.

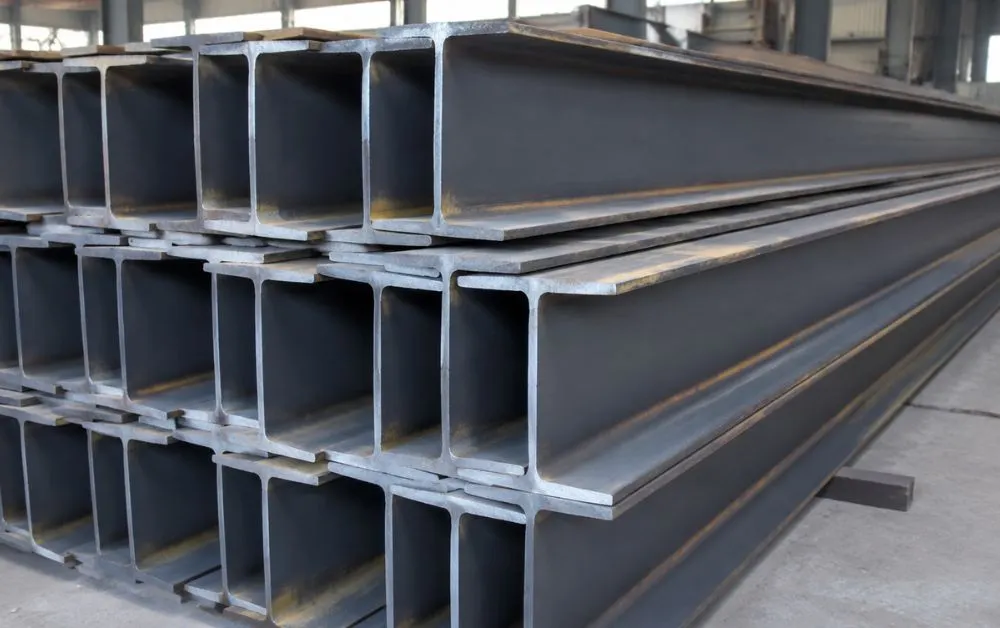

H Beam Standard Grades and Specifications
H beams used in UAE construction projects are specified to multiple competing standards depending on the project’s design basis and the consultant’s professional background. European EN 10025 grades S235, S275, and S355 are specified on projects designed by European and many international consultants — S355 being the high-strength grade that often allows smaller, lighter section specifications to carry the same load as larger S275 or S235 sections. American ASTM A36 and A572 Grade 50 are specified on projects following American design codes. For UAE projects procuring from the international steel market, confirming that the material offered matches the specified standard and grade — and that mill certificates confirming the mechanical properties can be provided — is the most critical quality assurance step in H beam procurement.
Read more-H Beams: Essential Guide for Construction and Industrial Use
Key UAE Construction Applications
In multi-storey commercial building frames — the most common structural application in Dubai and Abu Dhabi’s continuous construction environment — H beams sections serve as both columns carrying vertical gravity and wind loads and as floor beams spanning between columns to support composite metal deck floor systems. Industrial building portal frames use H beam columns and rafters to create clear-span structures with internal heights suitable for warehouse operations, manufacturing processes, and logistics facilities. Mezzanine floor structures, equipment platforms, conveyor support gantries, crane runway beams, and heavy access structures all rely on H beam members for the combination of high bending capacity, easy connectivity to other structural elements, and dimensional consistency that makes them the structural section of choice for these applications.

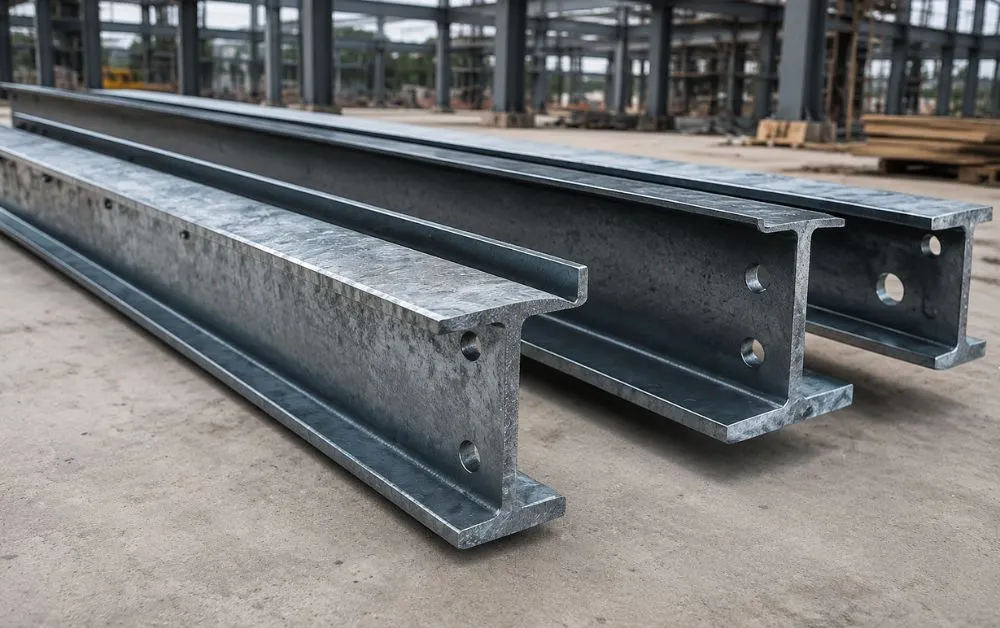

Sourcing Certified H Beams in the UAE
H beams procurement for formally inspected UAE construction projects requires material with full traceability to mill test certificates confirming material grade, chemical composition, mechanical test results — minimum yield strength, tensile strength, and elongation — and dimensional conformance to the specified section standard. UAE construction projects with third-party inspection requirements specify mill certification as a procurement baseline. Beyond certification, stock availability is a practical procurement constraint: the UAE steel supply market stocks the most common European HE and HEA series sections and American W-series sections in the highest-demand size ranges, but less common sections may require advance ordering with mill lead times that affect the construction programme if procurement is not initiated sufficiently early.
Working with UAE H Beam Suppliers
For significant H beams procurement requirements, engaging directly with established UAE steel stockists who maintain comprehensive inventory of certified material and can provide the full documentation package — mill certificates, test reports, and compliance confirmations — streamlines the procurement process and provides the material quality assurance that project inspection plans require. Suppliers who offer cut-to-length, drilling, and basic fabrication services alongside material supply reduce the site processing burden and the associated programme time that raw material procurement requires before structural elements are ready for installation.
